LA GARD
ComboGard Pro
Series

Retail – Secure and Reliable

The ComboGard Pro is the logical choice for retail security needs, whether as a new installation or lock replacement. The quick install, easy set up and option for allowing multiple users make this lock ideal for most retail applications. The ComboGard Pro provides an economical solution that is configurable to your business requirements.

Commercial – Trusted

A major benefit to using the ComboGard Pro in commercial applications is that manufacturers and distributors can quickly program the lock to suit the specific needs of each customer. Simple programming via the input pad saves both time and resources, allowing customer expectations to be met.

Financial – Quick and Customer Friendly

The ComboGard Pro has many financial applications including securing cash drawers, drop safes, cash safes, vaults, ATMs and secure containers of all manner. The ComboGard Pro provides multiple user access control. With programmable features such as time delay, dual mode (2 valid combinations to open) and duress alarm (silent alarm) signal, the ComboGard Pro is an ideal solution for securing cash and valuables.

The ComboGard Pro was developed to address the security requirements of a broad range of commercial and industrial markets.

The ComboGard Pro Series electronic combination lock is a multi-user lock (1 manager and 9 users) that may be programmed either at the keypad or with a PC. The ComboGard Pro was developed to address the security requirements of a broad range of commercial and industrial markets with 3 main programmable features; Times Delay, Dual Combination and Duress. The lock also has the capability for one optional Time Delay Override code to be programmed during the initial setup.

Easy to use push button access and standard 6 digit combination gives 1,000,000 possible permutations, or can be enabled for up to 9 digits per combination. Different input units – all in metal design – are available with a soft keypad or a dome membrane keypad.

Features

Lock Types Available

4300M Swing Bolt, 6040M Dead Bolt, 6034 Slam Bolt, 6441 Redundant Mechanical 4-Wheel

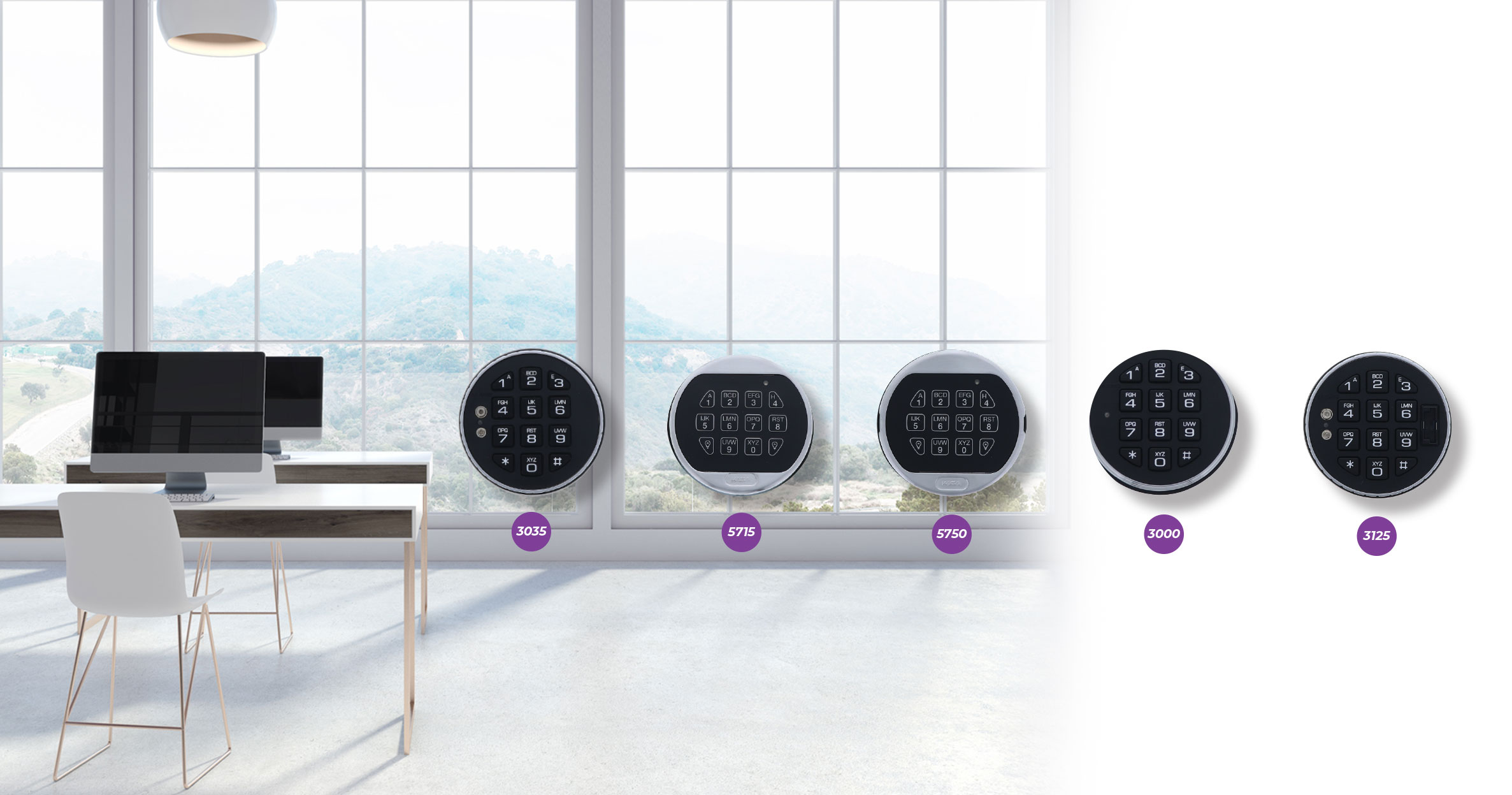

Entries

Recommended
3035
5715
5750
3000

Optional (no audit)
5750-K
3125

Manager Mode

Allows the Manager to add/delete or enable/disable up to 9 additional Users.

Code Hierarchy

User options: Up to 10 different opening codes; 1 manager and 9 users. The manager maintains control of the other users and can remove or add them as required.

Dual Mode

Requires the use of two valid combinations to open the lock. A security feature that allows two present users to open the lock.

Time Delay

Entering a valid combination starts the delay period which can be programmed from 1 to 99 minutes. If a staff member is under duress this feature is designed to prevent the lock from being opened immediately. Used together with appropriate business signage time delay is a widely used deterrent against theft.

Time Delay Override Mode

A time delay override code can be enabled to allow immediate access for an authorised user such as a cash carrier.

Duress Alarm

Duress alarm (silent alarm) if enabled can interface with an alarm panel by an interface box. The user can trigger a duress alarm while still opening the safe, allowing the authorities to be alerted without alerting the criminal. Alternatively, a duress interface can be used to remotely lockout the safe by your alarm provider.

Lock Disable

An input signal from an alarm panel via an interface box can be used to disable the lock preventing even valid combinations from opening.

Certifications

UL Listing, Type 1 – VdS Listing, Class 2

Low Battery Signal

Repeated LED flashing and beeping during opening indicates battery is low and needs immediate replacement.

Wrong Try Penalty

Attempting to guess the combination more than 4 times will render the lock inactive for a period of 5 minutes.

Durablilty

Environmentally tested from -10˚C to 85˚C

Audio and Visual Signal

Double signal
Two (2) LED flashes and two (2) beeps
indicates entry is valid or accepted.
Triple signal
Three (3) LED flashes and three (3) beeps
indicates invalid or not accepted.

Basic
AuditGard
Smart
